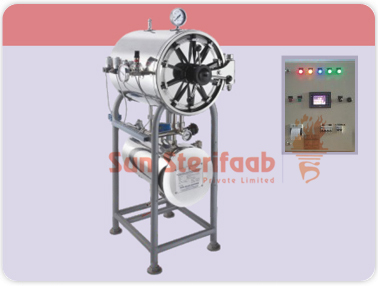

Horizontal High Speed, High-Pressure Cylindrical Sterilizer
with Automation Panel

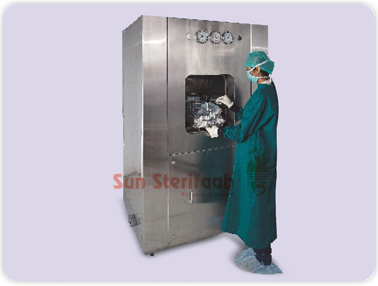

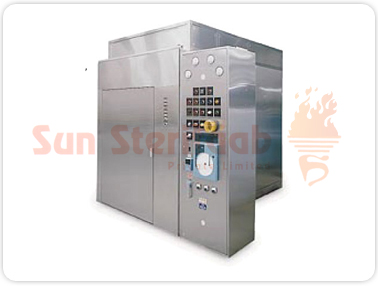

RECTANGULAR AUTOCLAVES (Steam Sterilizer Standard Size)
Sr. No.
Chamber Width (mm)
Chamber Height (mm)
Chamber Depth (mm)
Chamber Volume
(M3) / (Ft.3)
Chamber Capacity (Liters)
Floor Space
(Width x Depth)
1
450
450
900
0.18 / 6.75
191
1500 / 2300
2
600
600
1200
0.432 / 16
450
1700 / 2700
3
600
600
1500
0.54 / 20
563
1700 / 2700
4
900
900
1500
1.215 / 45
1269
2200 / 3000
CYLINDRICAL HORIZONTAL AUTOCLAVES (Steam Sterilizer for Hospital USE Standard Size)
Sr. No.
Chamber Diameter (mm)
Chamber Depth (mm)
Chamber Volume (Liters)
Steam Generator Capacity (liters / kw)
Floor Space (Width x Depth)
1
400
600
81
45 / 18
990 / 1800
2
500
900
185
55 / 36
1200 / 2300
3
500
1200
248
55 / 36
1200 / 2700
* In addition to the above any special sizes are also manufactured to suit customer requirements.
Vacuum System: Mechanical removal of air initially from within the chamber with the use of a vacuum system ensures that no air-pockets hinder the steam penetration and hence the sterilization process.
Steam Sterilizer for sterilization of varied Hospital equipment like gloves, linen, gauze, cotton, instruments, glassware etc. using standard 121°C & 134°C cycles which are pre-programmed in the memory of the PLC / Microprocessor
Electrical Steam-generator provided for all models up to a chamber volume of 1000 liters.
Temperature uniformly and accurately maintained throughout the chamber to within ± 0.5°C of the Set Sterilization temperature.
Air Filter: 0.01 micron clean air-filter for stabilization of the internal air-pressure from vacuum condition.
Door safety: Door is automatically locked when chamber is under pressure. For double door models, both doors will not open simultaneously to ensure sterile chain integrity.
Safety: Jacket and Chamber Safety valves provided.
Chamber Fabrication: Chamber fabricated out of SS 304 / S316 grade steel. Heavy duty Steel Jacket encircles and strengthens the chamber.
All machines are available with conventional hinged doors, or Modern Automatic sliding door options
Double-wall design ensures uniform and rapid pre-heating of the chamber
Flush-Mounted panel provided on the sterile side on request, ensuring separation from the un-monitored environment of the operating side.
Steam Sterilizer Sterility assurance through Automation:
During Sterilization a Microprocessor / PLC controls temperature, Pressure, Steam Injection, Sterilization time, Drying and all other critical time based parameters.
Important sterilization parameters like Phase Status, Current Values & set values, continuously displayed at all times on Controller Screen & on Remote Computer via SCADA software.
Continuous display of Temperature and Pressure On-line allows user to be aware of Cycle status at all times.
Error Code and alarm is generated and cycle stops automatically in case any error occurs. Computer Screen displays Error, possible cause and remedy.
The advanced SCADA software provided stores detailed records of Process- Data for every cycle.
Reports are available in Data, Summary and Graph formats for every batch of goods sterilized.
