 Supply Power 230 Volt 50 Hz |
| Temperature uniformly and accurately maintained throughout the chamber to within ± 0.5 °C of the set temperature. |
| Float Switch provided for low-water cut-off thus preventing damage to heaters. |

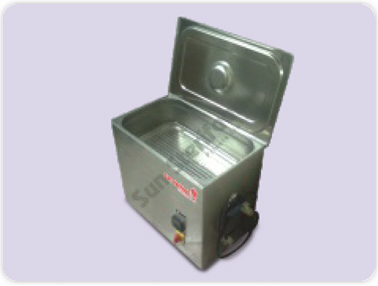

| Ultrasonic Frequency range 23 (±) 3 KHz. SS tank with complete SS body. Rugged & easy to clean stainless steel housing. Maintenance free. Latest technology. Universal applications. |
| Twin-tub models & tri tub models also available. |
| |
CLASS B TABLE TOP AUTOCLAVE (Technical Specification) |
| Sr. No. |
Model No. |
Capacity
(Itr.) |
Power
(Watt) |
Tank Inner Dimension
(mm) |
Outer Body Dimension
(mm) |
| 1 |
FS-06 |
3 to 6 |
120 W |
300 X 140 X 150 |
310 X 165 X 400 |
| 2 |
FS-10 |
9 to 10 |
250 W |
300 X 240 X 150 |
310 X 250 X 400 |
| 3 |
FS-20 |
20 |
350 W |
500 X 300 X 150 |
510 X 310 X 400 |
| 4 |
FS-50 |
50 |
500 W |
500 X 400 X 250 |
600 X 500 X 500 |
| 5 |
FS-100 |
100 |
750 W |
600 X 450 X 400 |
750 X 600 X 750 |
| |
|
| |
